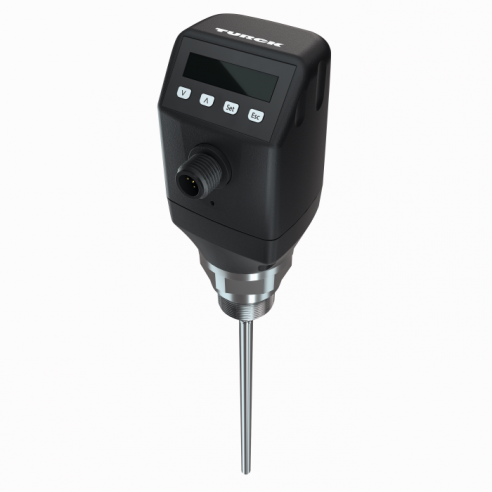

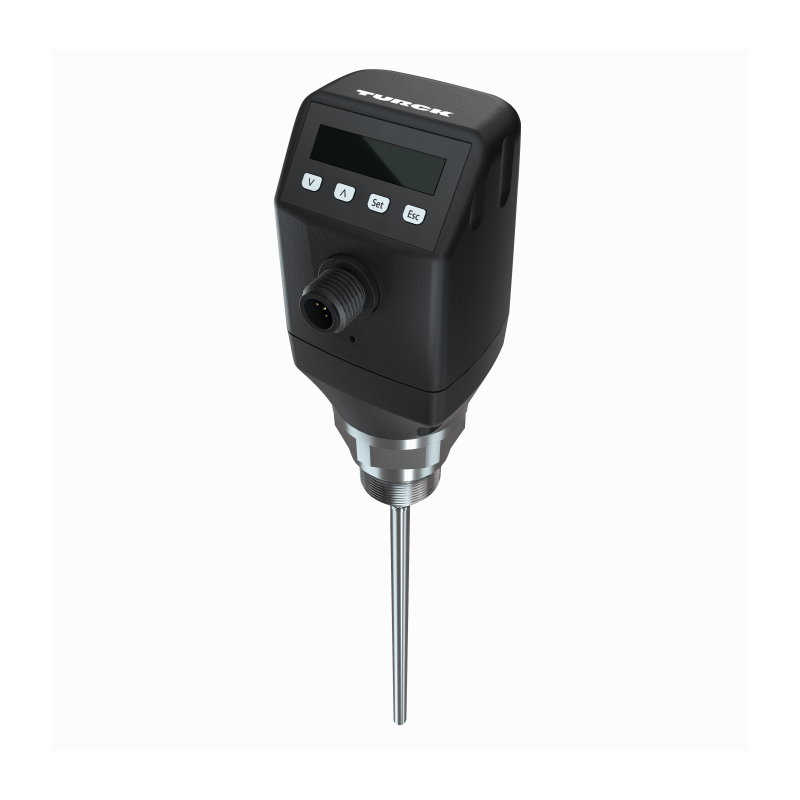

Turck, Sensor de nivel 100001850

Multiple output signals: one system for both level detection and continuous level monitoring

Low maintenance and quick commissioning without calibration

High flexibility due to cutable probe

Compact, rotatable display housing ensures easy installation

Small inactive areas, ideal for small containers

Process temperature to 212 °F

Process pressure up to 145 psi

Coaxial tubes available for non-metallic tanks

IO-Link 1.1

12…30 VDC

1 × analog output 4… 20 mA/0… 10 V (automatic switchover depending on load)

1 × transistor output (PNP) or IO-Link

3 × transistor output (PNP/NPN switchable)

Dielectric constant: ≥ 5 for mono-rod probe/rope probe or ≥ 1.8 with coaxial tube

Process connection G3/4" male thread

Probe length 200 mm
